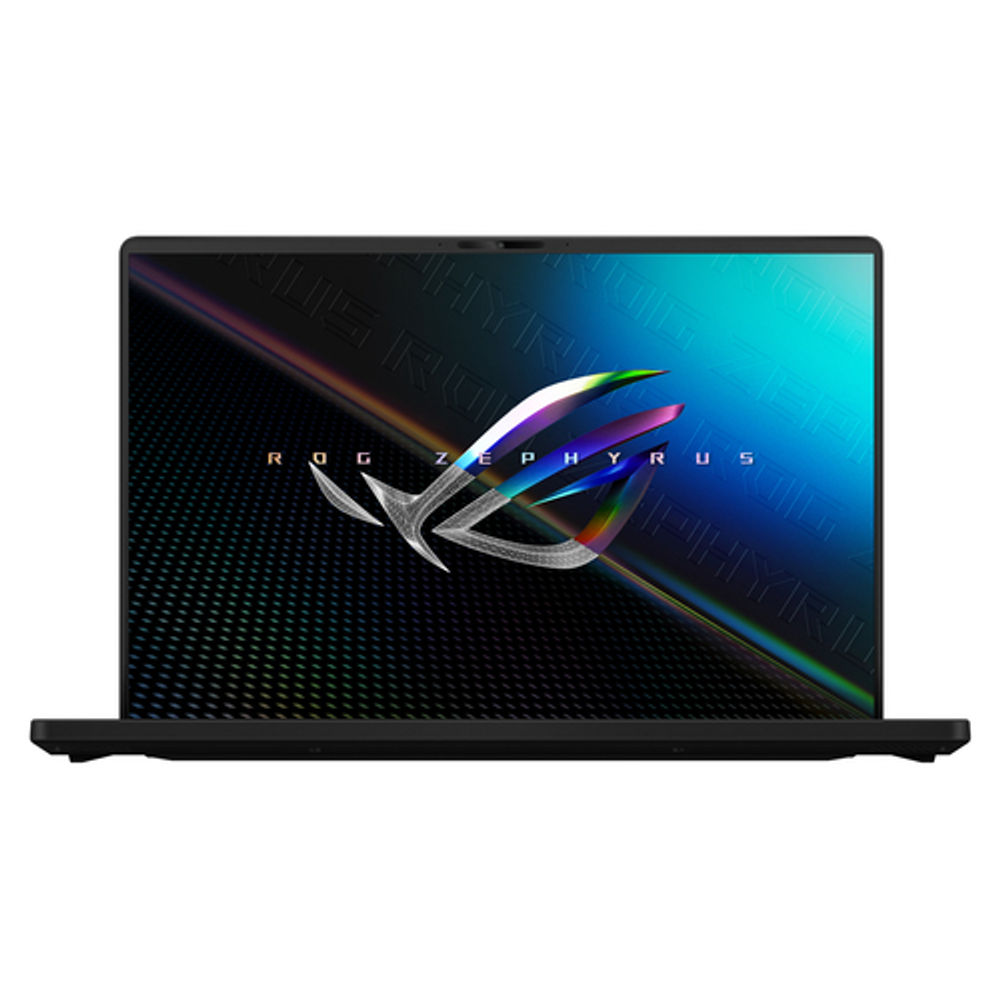

ASUS ROG Zephyrus M16 GU603ZM-K8006W i7-12700H Notebook 40.6 cm (16) WQXGA Intel Core i7 16 GB DDR5-SDRAM 1000 GB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6E (802.11ax) Windows 11 Home Black
ASUS ROG Zephyrus M16 GU603ZMK8006W Notebook 40.6 cm 16 WQXGA Intel CoOutperform Everyone
Speed, power, and portability achieve a perfect balance in the all-new 2022 Zephyrus M16. Its ultra-slim frame houses a powerful 12th Gen Intel Core i9-12900H CPU with NVIDIA GeForce RTX 3080 Ti Laptop GPU. With up to 48GB of DDR5 4800MHz RAM and up to 2TB of ultrafast PCIe 4.0 storage, everyday work and multitasking is faster. Lightning-fast load times for demanding apps makes gaming and content creation speedier than ever.
- Windows 11 Home 64-bit
- Intel Core i7-12700H (24MB Cache)
- 40.6 cm (16") WQXGA 2560 x 1600 IPS, NVIDIA GeForce RTX 3060 (6GB GDDR6)
- 16GB (4800MHz) DDR5-SDRAM (2 x 8) & 1000GB SSD
Audio
Audio system
Dolby Atmos
Builtin microphone
Y
Basic Data
Brand
Asus
OEM
GU603ZM-K8006W
Country of Origin
China
Pack Contains
1
Product Unit
Each
Product Unit of Sale Barcode
0195553610988
Battery
Battery capacity
90 Wh
Battery technology
LithiumIon LiIon
Number of battery cells
4
Camera
Front camera
Y
Front camera HD type
HD
Infrared IR camera
Y
Design
Colour name
Off Black
Product type
Notebook
Product colour
Black
Form factor
Clamshell
Market positioning
Gaming
Introduction year
2022
Country of origin
China
Display
Display diagonal
40.6 cm 16
Touchscreen
N
HD type
WQXGA
Panel type
IPS
Native aspect ratio
16:10
Antiglare screen
Y
Display brightness
500 cdm2
RGB colour space
DCIP3
Display response risefall
3 ms
Maximum refresh rate
165 Hz
Contrast ratio typical
1200:1
Display resolution
2560 x 1600 pixels
Colour gamut
100%
Environmental
Recyclable
No
Recycled Product
No
Graphics
Discrete GPU manufacturer
NVIDIA
Discrete graphics memory type
GDDR6
Discrete graphics card model
NVIDIA GeForce RTX 3060
Onboard graphics card
Y
Discrete graphics card
Y
Onboard graphics card model
Intel Iris Xe Graphics
Discrete graphics card memory
6 GB
Keyboard
Pointing device
Touchpad
Numeric keypad
N
Keyboard backlit
Y
Logistics data
Harmonized System HS code
84713000
Memory
Memory form factor
Onboard SODIMM
Internal memory
16 GB
Internal memory type
DDR5SDRAM
Memory clock speed
4800 MHz
Memory layout slots x size
2 x 8 GB
Memory slots
1x SODIMM
Maximum internal memory
40 GB
Network
WiFi standards
WiFi 6E 802.11ax
Mobile network connection
N
Antenna type
2x2
Ethernet LAN
Y
Ethernet LAN data rates
1010010002500 Mbits
Bluetooth
Y
Top WiFi standard
WiFi 6E 802.11ax
Bluetooth version
5.2
Packaging data
Package width
90 mm
Package height
335 mm
Package weight
4.35 kg
Package depth
465 mm
Ports & interfaces
HDMI version
2.0b
USB 3．2 Gen 2 3．1 Gen 2 TypeA ports quantity
2
USB 3．2 Gen 2 3．1 Gen 2 TypeC ports quantity
1
Thunderbolt technology
Y
Ethernet LAN RJ45 ports
1
HDMI ports quantity
1
Thunderbolt 4 ports quantity
1
Intel Thunderbolt 4
Y
Combo headphonemic port
Y
USB TypeC DisplayPort Alternate Mode
Y
USB Power Delivery
Y
Power
AC adapter power
240 W
AC adapter frequency
50 60 Hz
AC adapter input voltage
100 240 V
AC adapter output current
12 A
AC adapter output voltage
20 V
Processor
Processor generation
12th gen Intel Core i7
Processor cache
24 MB
Processor manufacturer
Intel
Processor model
i712700H
Processor family
Intel Core i7
Processor cores
14
Configurable TDPdown
35 W
Processor special features
Intel Flex Memory Access
Y
Intel Trusted Execution Technology
Y
Intel VTx with Extended Page Tables EPT
Y
Execute Disable Bit
Y
CPU configuration max
1
Intel Virtualization Technology for Directed IO VTd
Y
Intel Virtualization Technology VTx
Y
Embedded options available
N
Security
Password protection type
BIOS User
Cable lock slot
Y
Cable lock slot type
Kensington
Windows Hello
Y
Password protection
Y
Software
Operating system architecture
64bit
Operating system installed
Windows 11 Home
Trial software
1month trial for new Microsoft 365 customers. Credit card required.
Storage
Total SSDs capacity
1000 GB
SSD form factor
M.2
Total storage capacity
1000 GB
Storage media
SSD
Number of SSDs installed
1
SSD capacity
1000 GB
SSD interface
NVMe PCI Express 4.0
NVMe
Y
Optical drive type
N
Card reader integrated
Y
Compatible memory cards
MicroSD TransFlash
Weight & dimensions
Width
355 mm
Depth
243 mm
Height
19.9 mm
Weight
1.9 kg
Compatibility
...
